Product details

Product features:

• Miniature temperature and humidity transmitter.

• Low power consumption can be used for battery power.

• Measuring range -40 … 60℃; 0… 100%RH.

• A sturdy metal case.

• Accuracy ± 1.5% RH.

• Standard M8 pluggable connector.

• Optional dew point calculation output.

• Optional RS485 digital output.

• Suitable for a variety of applications.

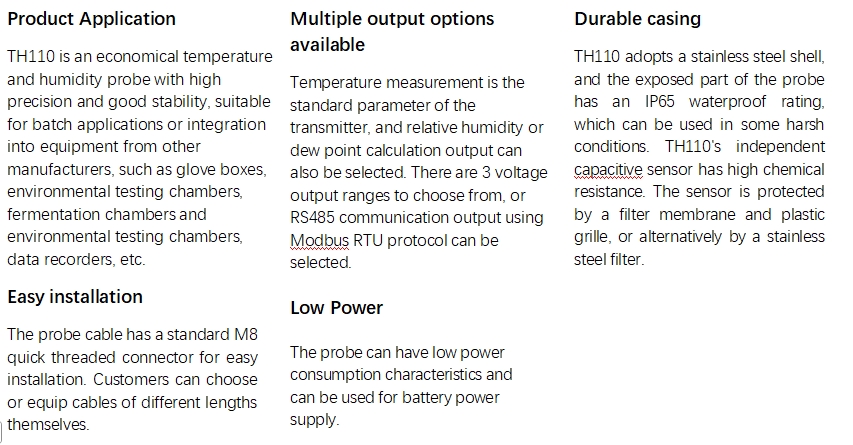

Product application

SS-TH110 Temperature and Humidity Probe TH110 is an economical temperature and humidity probe with high accuracy and stability, suitable for batch applications or integration into other manufacturers' equipment, such as glove boxes, environmental test chambers, fermentation chambers and environmental test chambers, data loggers, etc.

And that installation is convenient

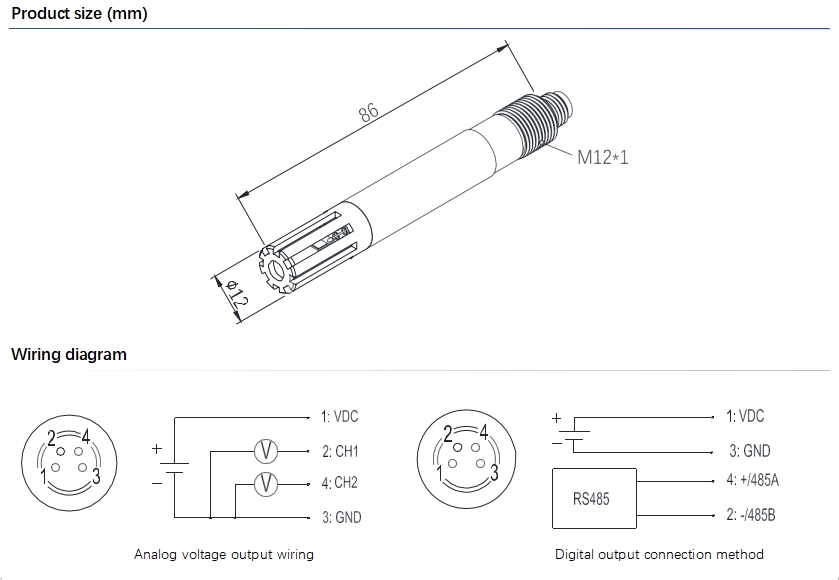

The probe cable has a standard M8 quick screw connection for easy installation. The customer can choose or provide different lengths of cable.

Multiple output options

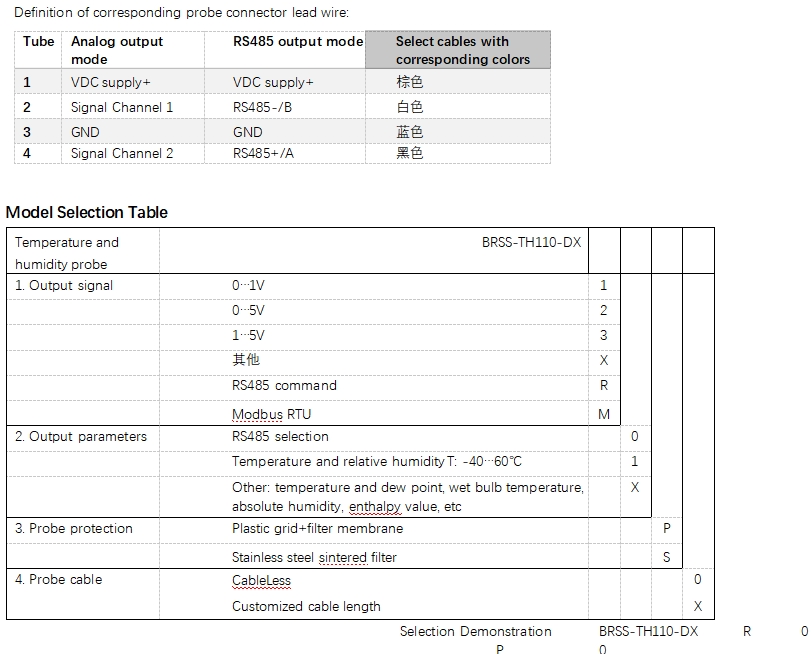

Temperature measurement is the standard parameter of the transmitter, and the output of relative humidity or dew point calculation can be selected. Available in 3 voltage output ranges or select RS485 communication output using Modbus RTU protocol.

Low power consumption

The probe may have low power consumption characteristics and may be used in a battery powered manner.

A sturdy shell

The TH110 has a stainless steel housing and the exposed part of the stem has an IP65 waterproof rating for use in some harsh conditions. The TH110's independent capacitive sensor has a high chemical resistance. The sensor is protected by a filter membrane and plastic grille, or optionally by a stainless steel filter.

SS-TH110 Temperature and Humidity Probe.pdf
