Product details

Product features：

• Innovative full-function hybrid transmitter for BMS/EMS with 4 ~ 20mA/RS485/wireless transmission and 64000 sets of cache.

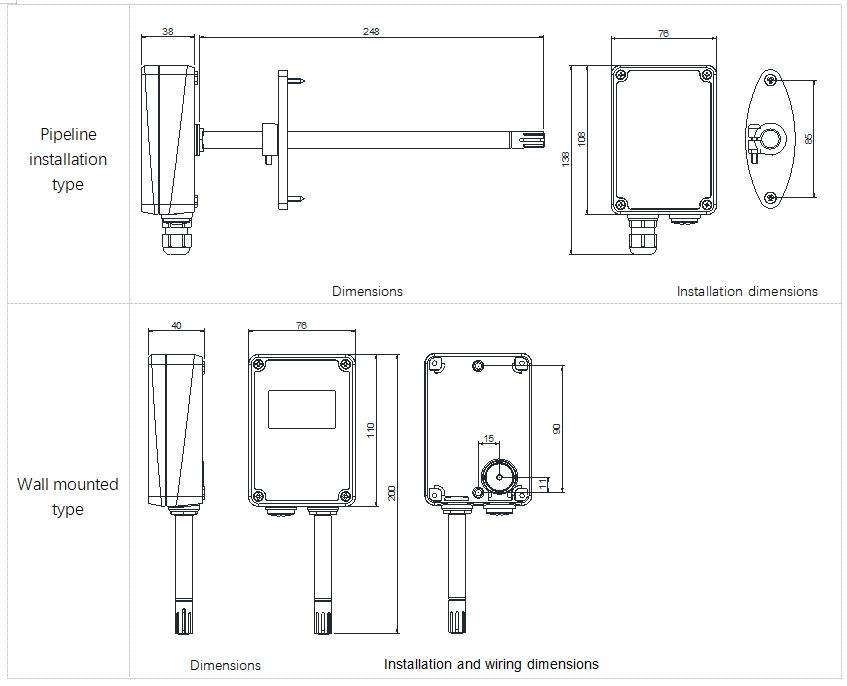

• High standard HVAC control applications, wall mounted and pipe mounted wall mounted, with back concealed outlets, aesthetically pleasing and dust and water resistant.

• With its own battery, it can work independently (without power supply) for 700 days.

• It is equipped with high-precision RTC to ensure that the daily clock deviation is less than 1.5 seconds (above 0 ℃), and it can be automatically timed through wireless.

• High performance capacitive humidity sensor.

• Accuracy ± 0.15 ℃, ± 1.5% RH.

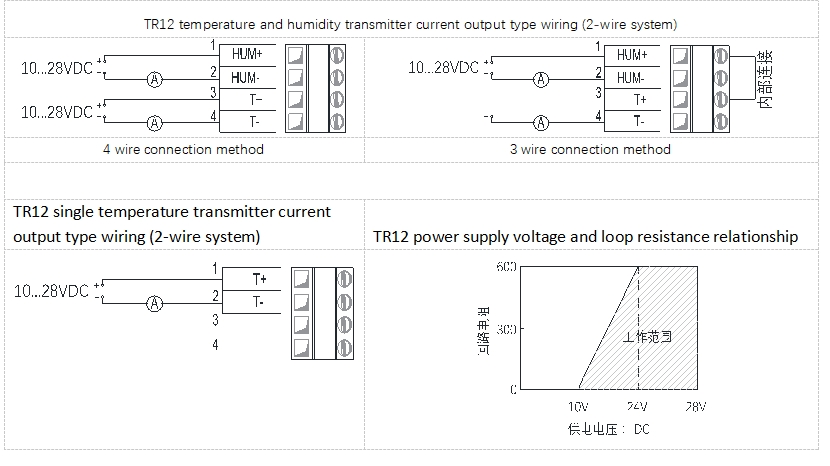

• 2 wire system 4 … 20mA current output.

• Support the calibration of on-site comparison equipment.

• Excellent long-term stability.

TR12 series hybrid temperature and humidity transmitter creatively realizes the functional integration of transmitter and wireless recorder. First, when the transmitter is used, the data will be backed up continuously while the temperature and humidity data is output through 4 ~ 20 mA. If one group of data is backed up in one minute, the data can be stored for 34 days. Second, the transmitter is equipped with two ER14505 batteries, which can keep the transmitter working for 700 days in the case of abnormal external power supply. The battery maintenance cycle is 5 years. The stored data can be exported through the USB tool connected to the computer, and can also be imported into the Ciplelink continuous monitoring system through the Boron data gateway. Secondly, TR12 can work independently as a wireless data logger, transmitting data to EMS system wirelessly, with 64000 sets of cache, and the battery standby time reaches 700 days.      The R12 Series Wireless Storage Temperature and Humidity Transmitter uses independent platinum resistance thermometry and polymer film capacitance to measure humidity for accurate relative humidity and temperature measurements in closed-loop control systems such as HVAC and cleanroom applications. Applications include wall and duct mounting, with an IP65 rating for use in wet areas. Each TR1X series transmitter is individually calibrated at the factory. If necessary, the transmitter can also be calibrated in situ using a PC with a reference.      The new generation of TR12 series wireless storage temperature and humidity transmitter adds the design of hidden lead port on the back for wall installation, which is more in line with the aesthetic and protective requirements of large-scale modern indoor installation.

TR12 Series Temperature and Humidity Transmitter.pdf
